1546216-2
Manufacturer:
TE Connectivity
Mfr.Part #:
1546216-2
Datasheet:
Description:

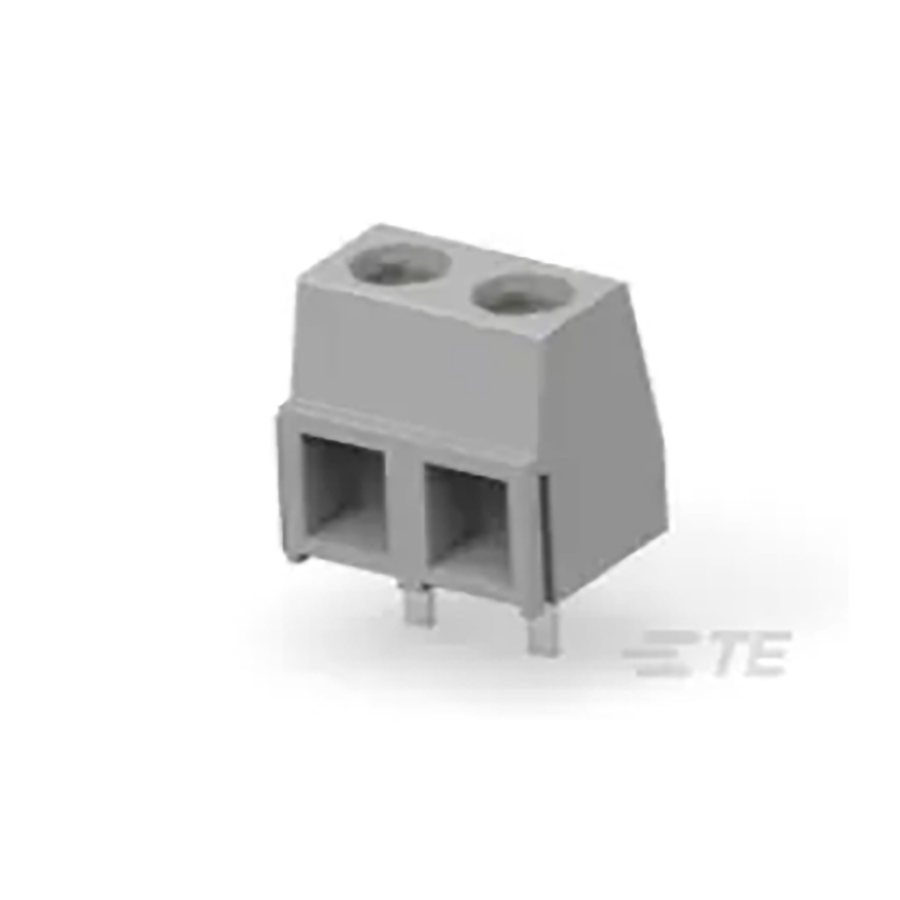

Terminal Blocks Through Hole 2 5 mm 13.5 A 300 V 17 AWG to 15 AWG
| Parameter | Value |
|---|---|
| Length | 10 mm |
| Width | 8.2 mm |
| Termination | Screw |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 300 V |
| Packaging | Bulk |
| Voltage Rating | 300 V |
| Depth | 8.2 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Voltage | 300 V |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 5 mm |
| Current | 13.5 A |
| Current Rating | 13.5 A |
| Max Current Rating | 13.5 A |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 2 |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Grey |
| Gender | Male |
| Number of Contacts | 2 |
| ELV | Compliant |
| Number of Poles | 2 |
| Connector Type | Receptacle |
| Wire/Cable Gauge | 30 AWG |
| Thread Size | M3 |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Housing Material | Polyamide |
| Number of Positions Per Level | 2 |
| Number of Levels | 1 |
| Connector System | Wire-to-Board |
| Max Voltage Rating (AC) | 300 V |
| Max Supply Voltage (AC) | 300 V |
| Wire Gauge (Max) | 17 AWG |
| Wire Gauge (Min) | 30 AWG |
| Housing Color | Gray |
| Plating | Brass |
| Tail Length | 3.5 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Connection Method | Screw |
| Wire Gauge Range | 17 AWG to 15 AWG |
Stock: 1024
Distributors
pcbx
pcbxUnit Price$0.76944
Ext.Price$0.76944
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.76944 | $0.76944 |
| 10 | $0.56169 | $5.61690 |
| 25 | $0.48902 | $12.22550 |
| 50 | $0.44200 | $22.10000 |
| 100 | $0.40096 | $40.09600 |
| 300 | $0.34967 | $104.90100 |
| 500 | $0.32805 | $164.02500 |
| 1000 | $0.30777 | $307.77000 |
